City Mapping

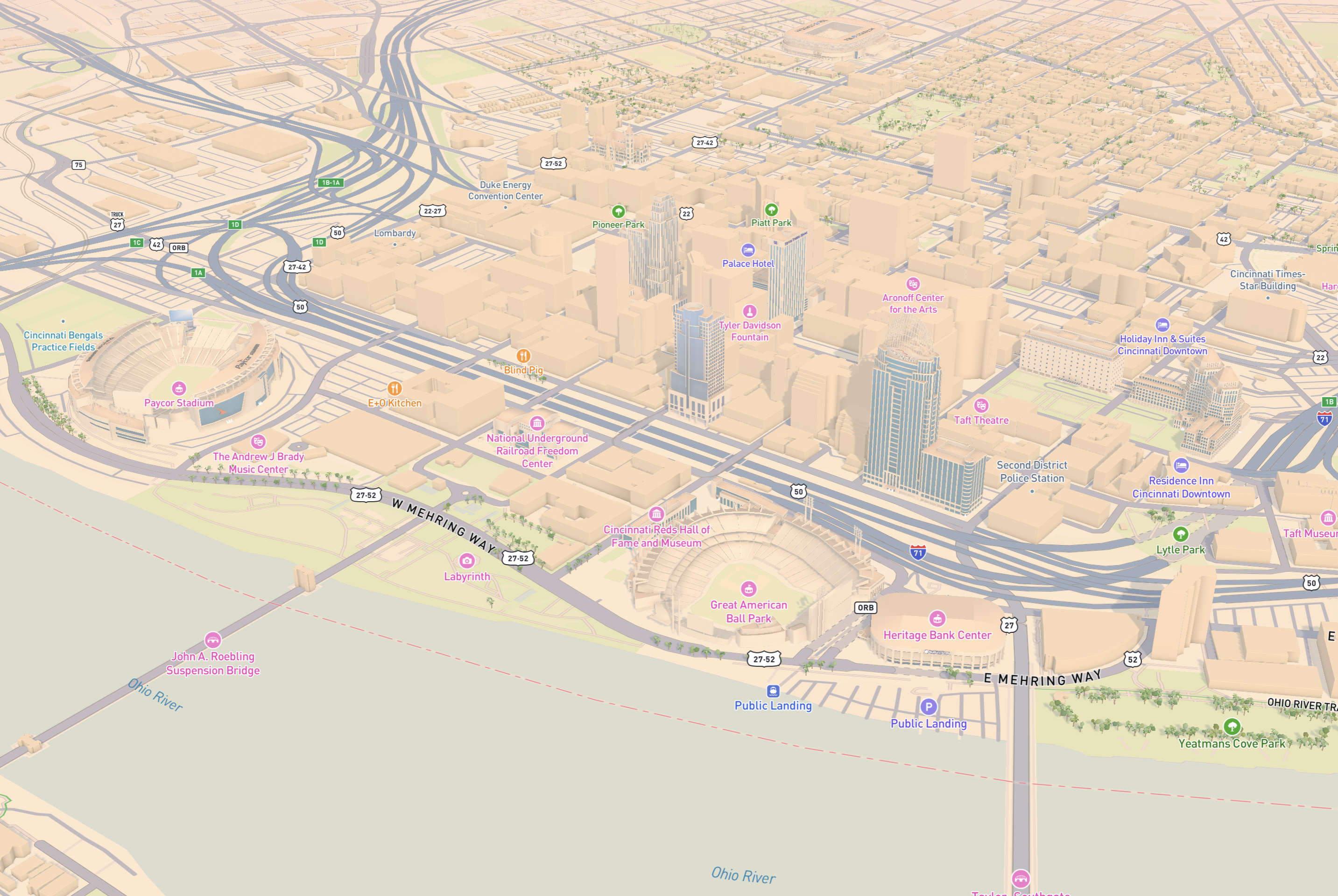

RoveIQ’s mapping system supports the ability to map entire cities, leveraging OpenStreetMap (OSM) data to provide accurate and comprehensive geographic information. Unlike venue-specific maps, which rely on adding locations to suites, city mapping uses geocoding to place locations on the map based on their physical addresses. This approach ensures users can seamlessly navigate from one point to another within large urban areas.

These features are available to customers utilizing City Maps.

Adding Locations to a City Map

To add a new location to a city map, follow these steps:

1. Navigate to the Locations Page:
   • From the main menu, go to Content and select Locations.
2. Create a New Location:
   • Click on the New Location button in the upper right-hand corner. Fill Out the Location Details which include:
     • Location Name: Enter a descriptive name for the location, such as the business or landmark name.
     • Address: This is the most critical field. Enter a valid address to ensure the location can be geocoded accurately and users can get directions to it from the map interface.
     • Description: Provide additional context about the location, such as operating hours or services offered
     • Category: Assign a category or tag for easy filtering (e.g., Restaurants, Parks, Retail).
     • Logo: Upload a logo or icon to visually represent the location.
     • Banner Image: Upload a 16:9 image to visually represent the location on listings.

Geocoding relies on precise address data to locate the point on the map. Double-check addresses for typos or inaccuracies before saving.

1. Save the Location:
   • Once all the details are entered, click Save to add the location to the map. The system will automatically place it on the map based on its geocoded address.

Creating Location Categories

Categories, or Location Types, allow you to organize and classify locations within your city map, making it easier for users to filter and find what they need. Follow these steps to create new categories for your city map.

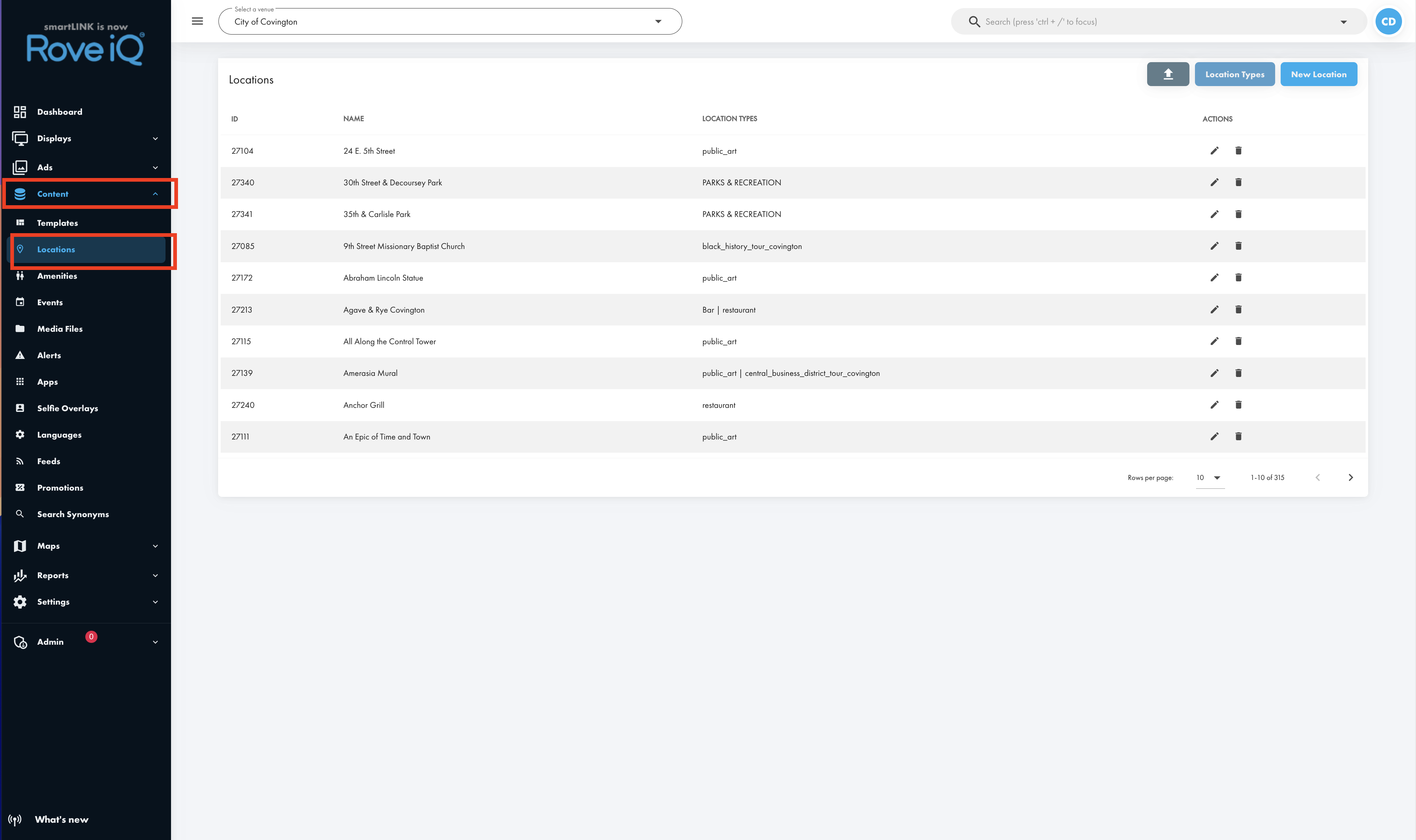

1. Navigate to the Locations Page:
   • Log in to the RoveIQ portal.
   • Go to Content and select Locations.

2. Open the Location Types Menu:

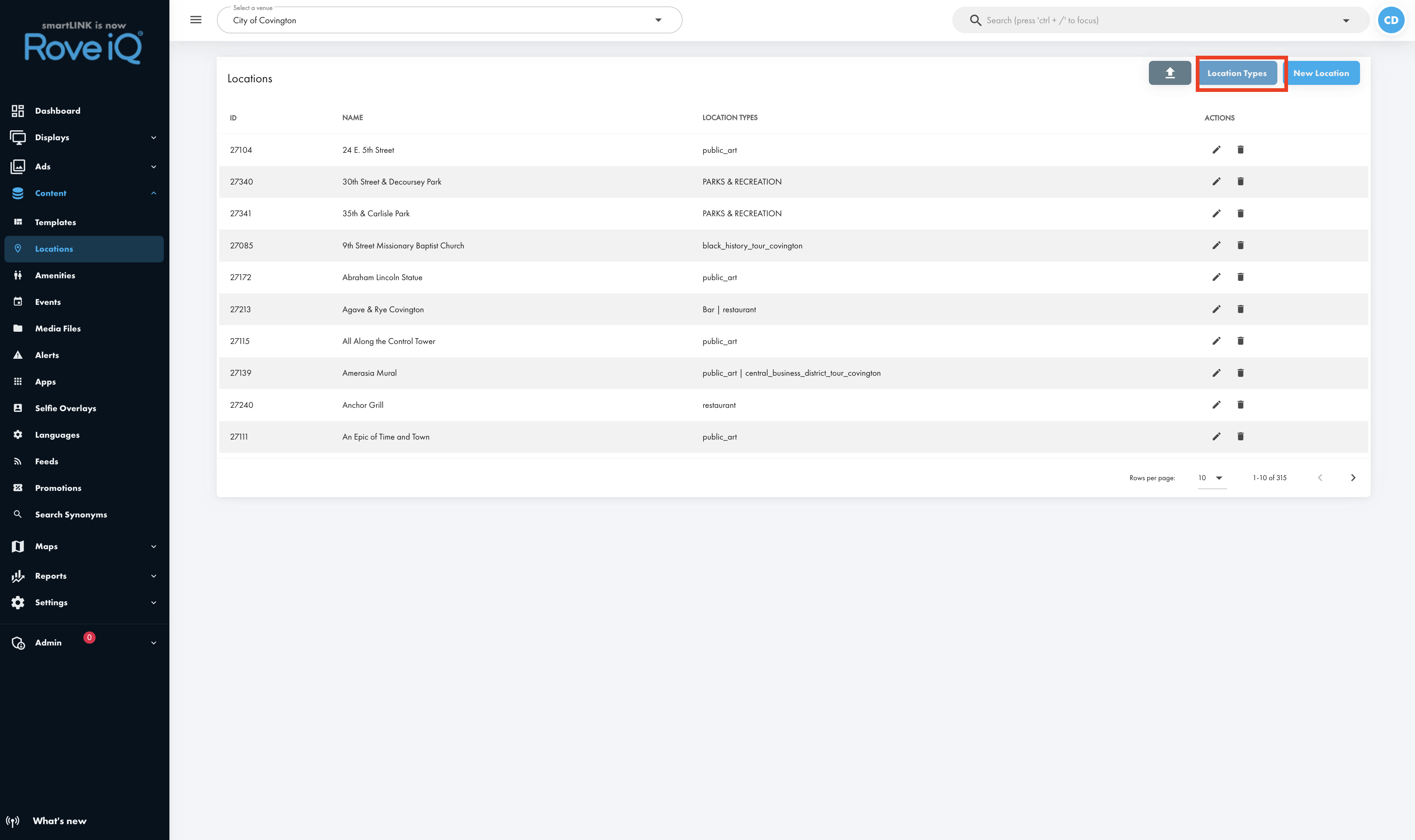

   • Click the Location Types button in the top right corner of the Locations page.

3. Add a New Category:

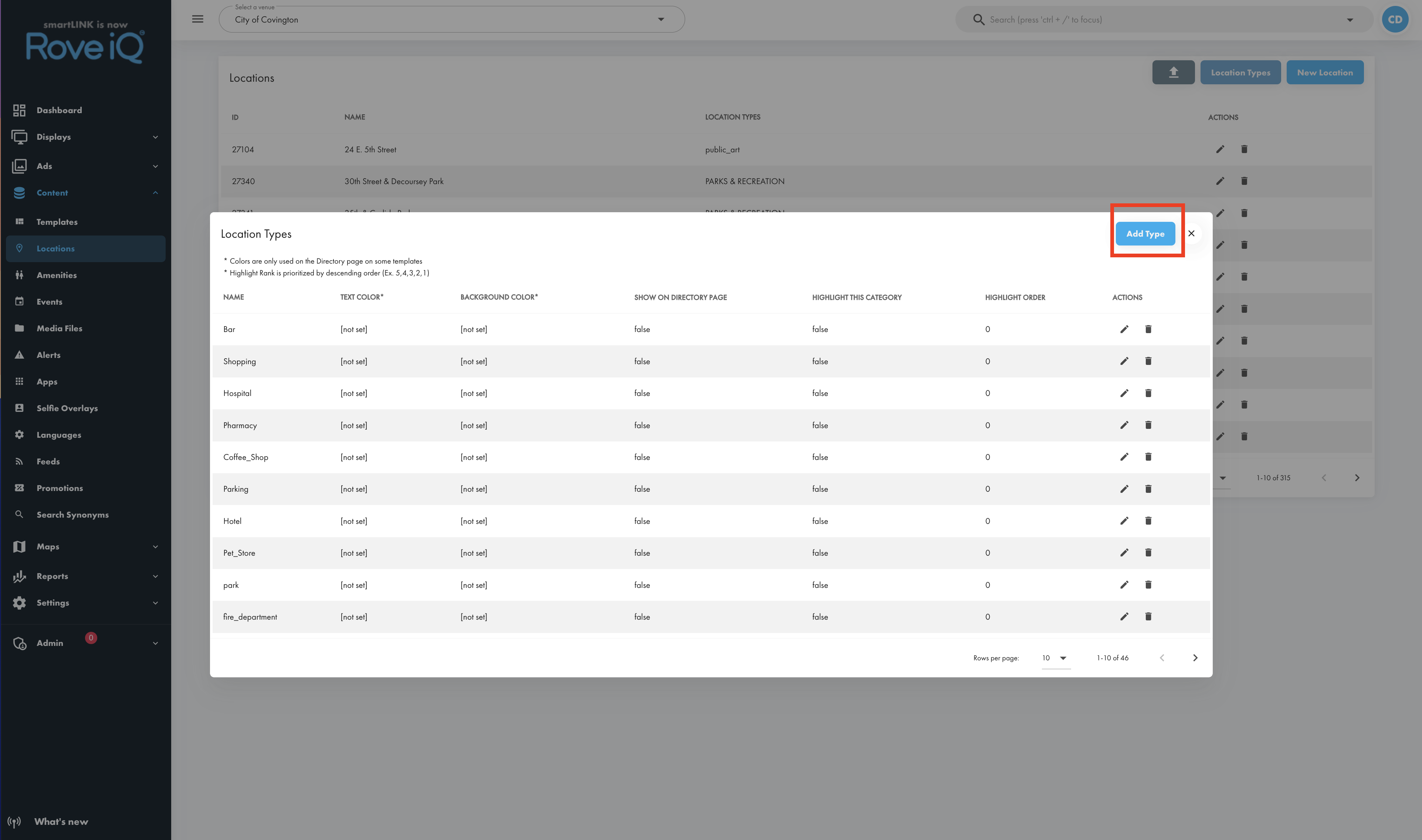

   • An the pop-up window that appears, click Add Type.
   • Enter the desired name for the category (e.g., Restaurants, Parks, Retail).
4. Save the Category:
   • Once you’ve entered the category name, click Save to add it to the list of location types.

To ensure this category is accessible on the directory UI, please refer to the Location App Article here.
